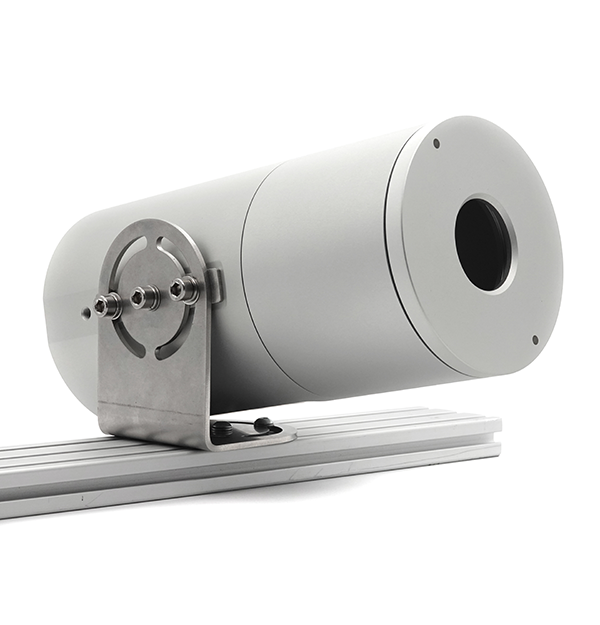

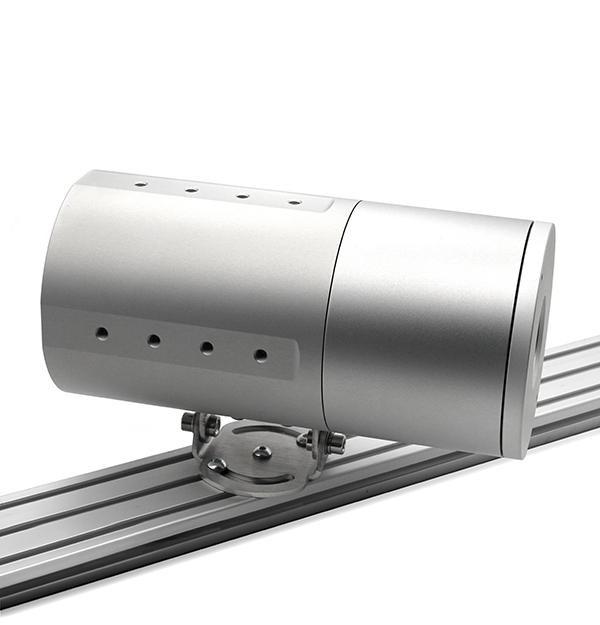

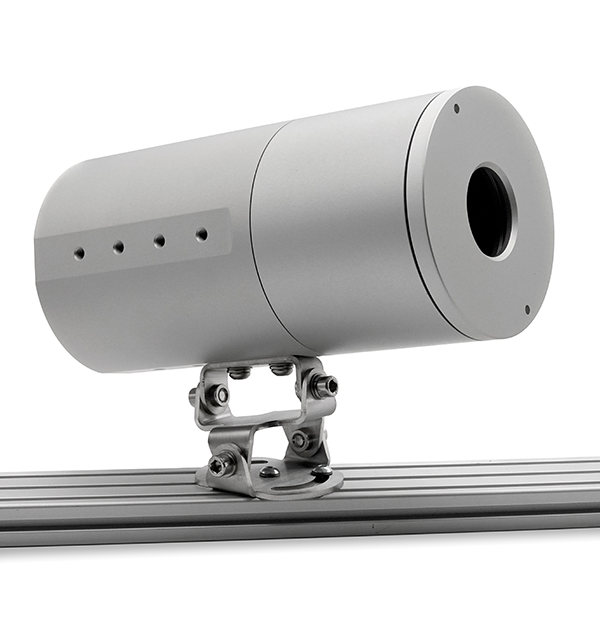

This aluminum, IP67-rated protective housing is specifically designed for FLIR A50/A70 thermal cameras. Camera accuracy within the protective housing remains within standard specifications due to FLIR's proprietary radiometric formulas. Compatible accessories include cooling block/jacket, sun shield, and numerous mounting options.

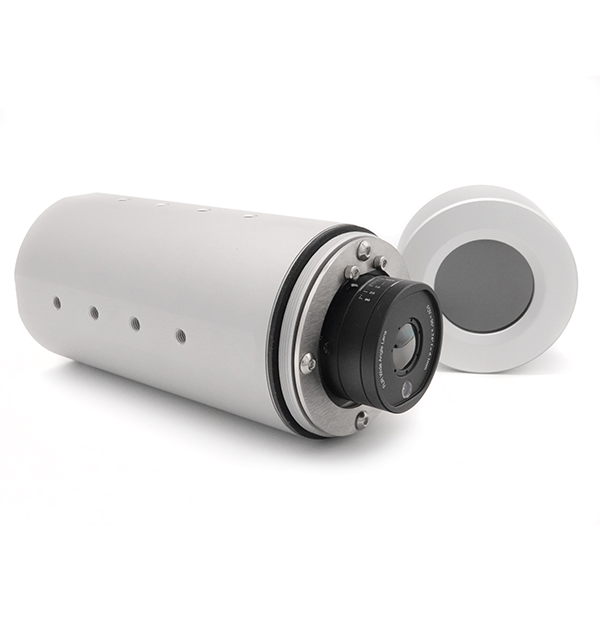

Note: the germanium window blocks the visual camera.
Added to cart
Model:
Specifications
Environmental & Certifications
- Encapsulation
- IP67
- Mounting
- 4x sides, 4x m6, cc 25 mm, depth 5 mm
General
- Material
- Aluminum, 6000-series
- Size [L × D]
- 187.2 × 80.0 mm (7.37 × 3.15 in)
- Weight
- 1.3 kg (2.87 lbs)
Imaging & Optical
- Aperture
- 43 mm
Imaging & Optical
- Color
- Silver
- Compatible cameras
- FLIR A50/A70
Other
- Conformity
- RoHS, REACH
- Window Coating
- Outside: DLC; Inside: AR
- Window Material
- Germanium
