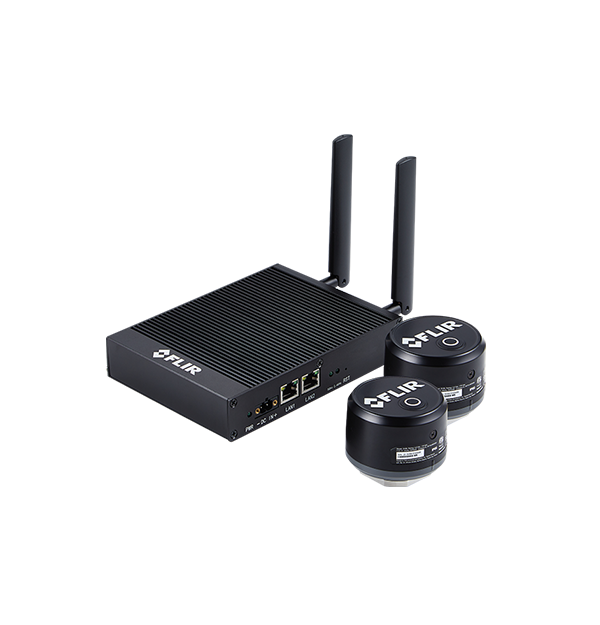

FLIR SV89-KIT

Communication & Data Storage

Communication Protocol

Sensor: TCP Socket;
Gateway: MQTT, Modbus, OPC UA

Memory

Sensor: 1 MB Flash;
Gateway: DDR3L 512 MB

Output Data

Sensor: 10 KHz, Z: 12,800 raw data;
Gateway: Vibration analysis data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT

Range (During A Session)

Up to 50 m (160 ft), line of sight

Wi-Fi Type

IEEE 802.11n

Power

AC Input

TA87 universal power adaptor: 100 V to 240 V AC, 50/60 Hz (optional)

Battery Life

LS17500 3.6 V 3600 mAh Li battery (replaceable)

Battery Type

-20° to 80°C (-4°F to 149°F)

LED Indicators

Sensor: Low battery LED;
Gateway: WAN, LAN, 2.4 GHz, 5 GHz dual band dual concurrent

Power Input

12 VDC

Power over Ethernet (PoE)

802.3 at standard PoE (PD) @ WAN port

General

Operating System

Built-in webserver (Linux)

Size (L x W x H)

Sensor: 29 × 25 × 14 mm (1.14 × .98 × .55 in);
Gateway: 57.3 × 39.3 × 46.1 mm (2.25 × 1.55 × 1.81 in)

Weight

Sensor: 187 g (6.6 oz);
Gateway: 645 g (22.75 oz)

Environmental & Certifications

Altitude

2000 m (6,562 ft)

Certifications

ETL/FCC/IC/CE/UKCA/RCM

Drop test

1 m (3 ft)

Humidity (Operating and Storage)

10% - 95% relative humidity, non-condensing

IP Rating

Sensor: IP66;
Gateway: IP40

Operating Temperature Range

-20° to 80°C (-4°F to 149°F)

Relative Humidity

10% - 95% relative humidity, non-condensing

Storage Temperature Range

-20° to 80°C (-4°F to 149°F)

Warranty

3 years
