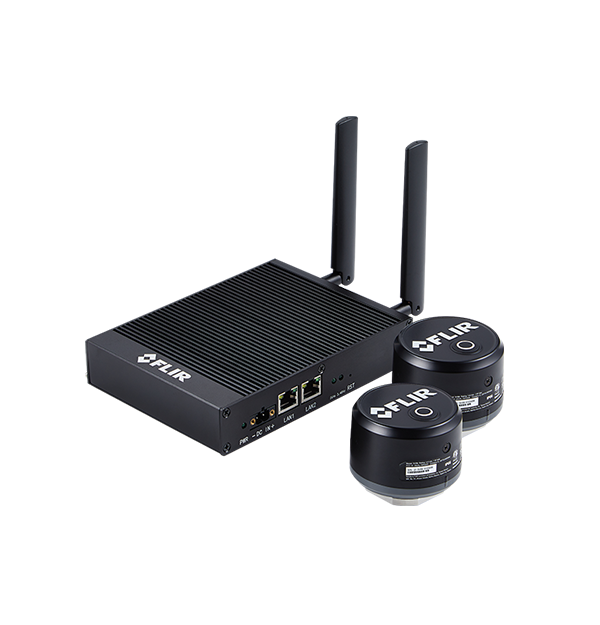

The FLIR SV88™ Vibration and Temperature Monitoring Kit helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With its Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 Vibration Monitoring Solution Kit allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets.
- Products
- Industrial
- Test & Measurement
- Vibration Sensors
- FLIR SV88-KIT
Added to cart
-
Assure Reliability
Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - Averting costly downtime
-
Quick, simple deployment
Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments The SV88 seamlessly integrates with advanced analysis tools through multi-communication protocols such as Modbus, MQTT, and OPC UA.
-
Secure Data Control
Web based GUI for accessing vibration data, deploying sensors, and managing integrations, all performed on Gateway, ensuring you have complete control over your vibration solution.
Specifications
Measurement & Analysis
- Capture Rate
- Configurable: 1 min (minimum) - 1 day (maximum)
- Frequency Range
- Up to 50 m (160 ft), line of sight
- Sensitivity Range
- ± 16 g
- Temperature Range
- Display measurement trend of contact temperature -20°C to 80°C (-4°F to 176°F)
- Vibration Analysis Data
- Grms, Vrms (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT
Communication & Data Storage
- Communication Protocol
- Sensor: TCP Socket; Gateway: MQTT, Modbus, OPC UA
- Memory
- Sensor: 1 MB Flash;
Gateway: DDR3L 512 MB
- Output Data
- 5 KHz, X/Y/Z: 19,200 raw data
- Range (During A Session)
- Up to 50 m (160 ft), line of sight
- Wi-Fi Type
- IEEE 802.11n
Power
- AC Input
- TA87 universal power adaptor: 100 v to 240 V AC, 50/60 Hz (optional)
- Battery Life
- Min 2 years subject to sampling rate and installation environments
- Battery Type
- Sensor: LS17500 3.6 V 3600 mAh Li battery (replaceable)
- LED Indicators
- Sensor: Low battery LED;
Gateway: WAN, LAN, 2.4 GHz, 5 GHz dual band, dual concurrent
- Power Input
- 12 VDC
- Power over Ethernet (PoE)
- 802.3 at standard PoE (PD) @ WAN port
General
- Size (L x W x H)
- Sensor: 29 × 25 × 14 mm (1.14 × .98 × .55 in)
Gateway: 57.3 × 39.3 × 46.1 mm (2.25 × 1.55 × 1.81 in)
- Weight
- Sensor: 187 g (6.6 oz);
Gateway: 645 g (22.75 oz)
Environmental & Certifications
- Altitude
- 2000 m (6,562 ft)
- Certifications
- ETL/FCC/IC/CE/UKCA/RCM
- Drop test
- 1 m (3 ft)
- Humidity (Operating and Storage)
- 10% - 95% relative humidity, non-condensing
- IP Rating
- Sensor: IP66;
Gateway: IP40
- Operating Temperature Range
- -20° to 80°C (-4°F to 149°F)
- Relative Humidity
- 10% - 95% relative humidity, non-condensing
- Storage Temperature Range
- -20° to 80°C (-4°F to 149°F)
- Warranty
- 3 years
