Industrial Acoustic Imaging Camera for Pressurized Leak Detection and Mechanical Fault Detection

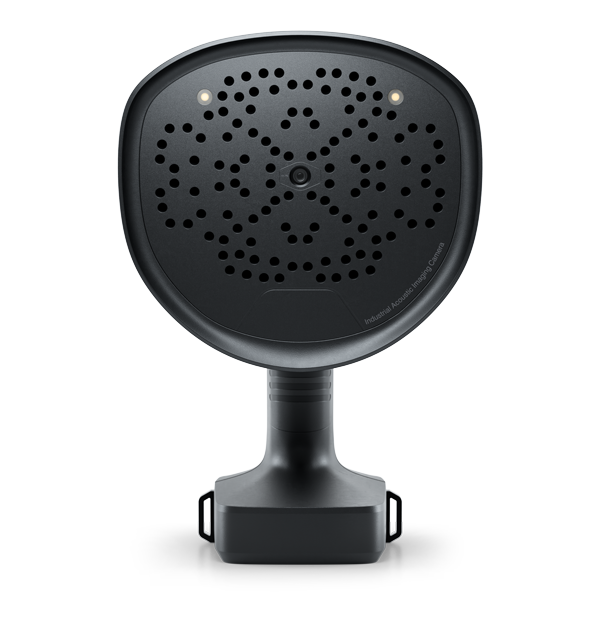

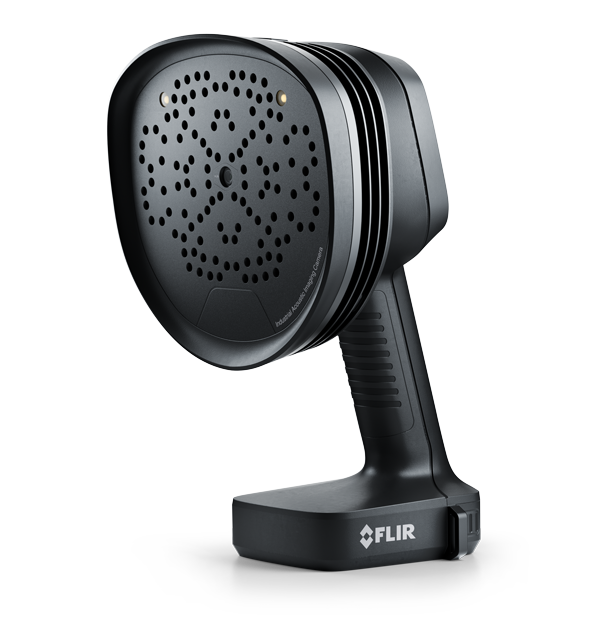

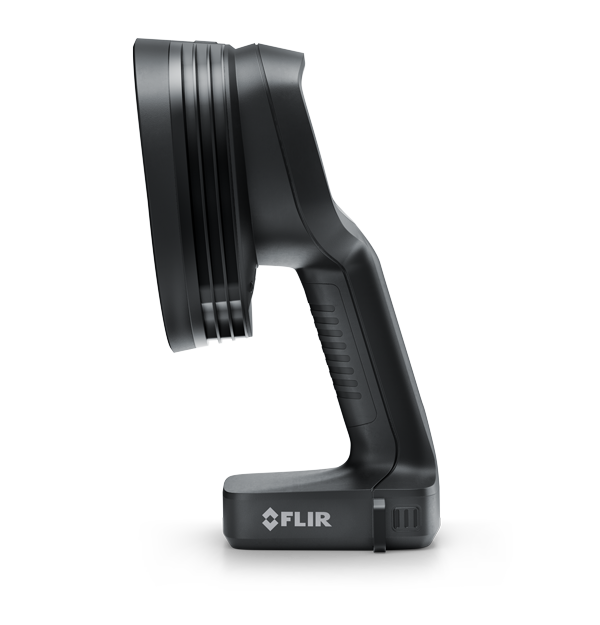

FLIR Si2-LD™

Go to Product Support
product image

The FLIR Si2-LD acoustic imaging camera enables you to detect and reduce leaks in facilities, thereby cutting costs associated with compressed air and specialty gas leaks. Beyond these capabilities, it also identifies mechanical faults, such as bearing issues, facilitating preventative maintenance to avoid downtime. The Si2 series delivers unparalleled performance, enhances decision support, simplifies fleet management, and integrates seamlessly with enterprise data, setting a new standard in its class.

For electric utility needs, choose the Si2-PD. For comprehensive coverage including electric utility, leak detection, and mechanical fault applications, select the Si2-Pro. You can explore these models in the related products section below.

$18,000.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
  • Advanced Leak Detection

    Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.

  • Bearing Fault Analysis

    Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing defects before they cause equipment failure.

  • Fleet Management Functionality

    Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.


SAVE ENERGY WITH SOUND SOLUTIONS


WHAT'S NEW WITH THE SI2 SERIES?



NEW 12 MP camera. 8x digital zoom. 1280 × 720, 5 in color screen.

Detect leaks up to 5x smaller from 4x the distance.

Identify and measure bearing & other mechanical issues.

Packed with features to streamline fleet operations.

Illuminate dimly lit areas with built-in LED lights.

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Acoustic Measurement
Detection threshold:
20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL

Supported gases: Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia

Other acoustic analysis modes: Mechanical fault detection
Distance
From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Wireless Data Transfer
Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Imaging & Optical
Camera software update
Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV)
75° diagonal
Video Frame Rate
Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution
1280 × 720
Zoom
8x Digital zoom
Measurement & Analysis
Acoustic Measurement
Detection threshold:
20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL

Supported gases: Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia

Other acoustic analysis modes: Mechanical fault detection
Bandwidth
2 kHz to 130 kHz
Distance
From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate
0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
User Interface
Display
Size: 5 in. 1280 × 720
Resistive touch screen, TFT LCD, MIPI DSI
Power
Battery
Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
Max output: 16.8 V DC, 5 A
Battery Charger
Input: 19-26 V DC, 2.8 A
Max output: 17.4 V DC, 4.8 A
Battery weight
~ 0.25 kg
Nominal Input Voltage
Nominal input voltage: 12 V DC
Max input: 17 V DC , 3.3 A (limited)
Environmental & Certifications
Operating And Storage Humidity
0-90% recommended
Operating Temperature Range
–10°C to 50°C (14°F to 122°F)
Protection Class
IP54
Storage Temperature Range
–20°C to 70°C ( –4°F to 158°F)
Warranty
http://www.flir.com/warranty/
General
Battery Size
85 mm × 77 mm (RRC2504)
Worklights
2 modes: On/Off
