5 MP HD and 4K UHD Network Cameras

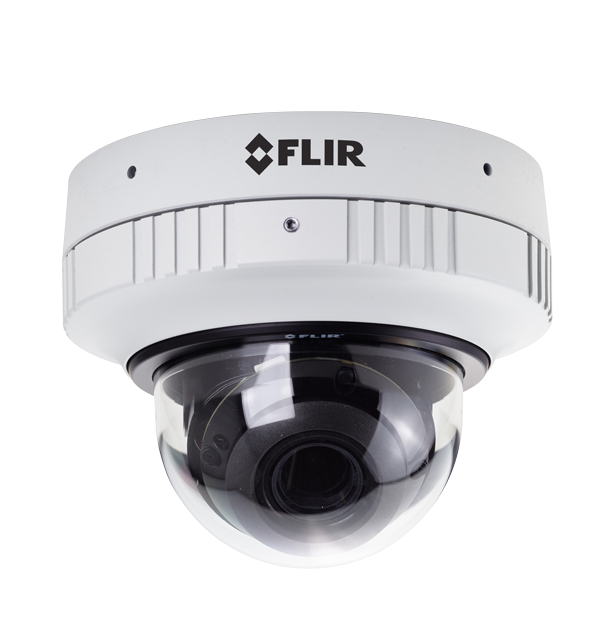

Quasar Premium Mini-Dome AI

Model: Quad HD 5 MP (CM-6405-11-IA) Go to Product Support
product image

The FLIR Quasar Premium Mini-Dome AI cameras are designed to provide advanced artificial intelligence, video analytics, and enhanced situational awareness in the most demanding environments where evidential and forensic video is required. The Premium Mini-Dome AI is a discreet surveillance option that is fully NDAA-compliant and utilizes high-end cybersecurity safeguards. Advanced features for low-light/no-light conditions ensure you will obtain excellent video quality in all indoor and outdoor conditions. Combined with the FLIR accessory and mounting ecosystem, the FLIR Quasar Premium Mini-Dome AI camera also offers seamless integration with a wide range of video management systems, giving you a more cost-effective end-to-end surveillance solution.

  • Artificial intelligence video analytics, on the edge

    Features advanced video analytics to help you detect with reliability, reduce false alarms, and quickly respond to threats.

  • Advanced situational awareness

    Improves situational awareness by offering more lens options, advanced low-light/no-light features and an advanced multi-shutter WDR feature.

  • Reliable and NDAA compliant

    With a 4-year warranty, IK10 and IP66 rating, and NDAA compliance, this camera extends product life, minimizes corrective maintenance, and optimizes the total cost of ownership.


Built for harsh environments

Advanced video analytics to improve detection

The FLIR Quasar™ Premium Mini-Dome AI features advanced video analytics for person/face/vehicle, intrusion-region/tripwire, object counting, loitering, stopped vehicle, abandoned object, object removal, wrong direction, camera sabotage, and people counting.
These analytics increase reliability, reduce false alarms, and they allow security staff to focus on other high-value tasks.

Intrusion for webpage cropped.png


Superior Image Quality

                    Misty mask analytics.png







The Quasar Premium Mini-Dome AI includes 3 shutter Wide Dynamic Range (130 dB), which provides optimal light balance to get the best details on scenes with different lighting conditions and market-leading, low-light sensitivity requiring only 0.04 lux to produce a color image.


Simple installation and integration

The Quasar Premium Mini-Dome AI can be installed in minutes and it seamlessly integrates with FLIR's United VMS and third party VMS systems via ONVIF profile M, saving you significant time and money on installation costs.

                                               Quasar white png.png

Specifications
General
Angle of View
102.1° × 70.2°
Automatic Electronic Shutter [AES]
1/1 to 1/32,000
Compression
Enhanced H.265 Main Profle + Enhanced H.264 Main/High/Baseline Profle + MJPEG"
Day/Night Mode
Yes
Digital Slow Shutter [DSS]
1/1 (1) - 1/60 (50) NTSC (PAL)
Dimensions
161 mm × 128.6 mm (6.3 in × 5 in)
Enclosure
Indoor/Outdoor: IK10 rated vandal IP66 NEMA 4X
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Input Voltage
PoE IEEE802.3af, class 0 AC 24 V, DC 12 V
Power Connection
RJ45 & AC/DC
Power Consumption
POE: 12.95W AC 24V: 13.2W; 24.20 VA DC 12V: 13.31W
Privacy Zones
Yes
Scanning Mode
Progressive
Shutter WDR
3 Shutter, 130 dB
Tamper Detection
Yes
Unit Weight
1.3 kg (2.86 lb)
Compliance & Certifications
International
CE marked, EN61000-6-3, EN 62368-1 & EN50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A
MTBF [hrs]
457097.0
ONVIF Compliance
Profiles S, G, M & T
USA
FCC Part 15 (subpart B, class A)
Cyber Security
Security
Password protection, IP address filtering, TLS/HTTPS, IEEE 802.1X network access control, Digest authentication, Password policy Protect from multiple failure login
Environmental
Humidity
90% (non-condensing)
Operating Temperature
-30°C to 60°C (-22°F to 140°F) without heater IR LED 100% max 50°C, 25% max 55°C -55°C to 60°C (-67°F to 140°F) with heater Cold start -40°C to 60°C (-40°F to 140°F) with heater IR LED 100% max 50°C, 25% max 55°C
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Environmental
Shock & Vibration
IEC 60068-2-64: 2008
Measurement & Analysis
Analytics Features
Person/Face/Vehicle; Intrusion-Region/ Tripwire; Object Counting, Loitering, Stopped Vehicle; Abandoned Object; Object Removal; Wrong Direction; Camera Sabotage; People Counting
Analytics Management
Web-based configuration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
Measurement & Analysis
Bump/Vibration
IEC 60068-2-27: 2008
PTZ
Pan_Tilt_Spin
356° /±80° / ±98°
Sensor & Optical
Automatic Gain Control [AGC]
Auto
System Integration
Bi-directional Audio
1 Audio Line Input, G.711/G.726/AAC/LPCM support + 1 Audio Line Output
Distance
Up to 40 m (131 ft)
Sunshield 28 m (91.8 ft)
Ethernet
10/100/1000, IEEE 802.3, auto sensing 1 x RJ45
Input
1 dry alarm contact 1 5 V 10 kΩ pull up
Network Protocol
IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP
Output
1 Relay Contact max. DC 5 V 130MA
Peak Emission Wavelength [nm]
850.0
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Firefox, Chrome, Edge, Safari
Video & Recording
Maximum Performance
H.264/H.265 30/25 fps @ 5M (NTSC/PAL) + 30/25 fps @ D1 or H.264/H.265 15/12 fps @ 5M + 1080p + D1 (NTSC/PAL) or H.264/H.265 60/50 fps @ 1080p + 30/25 fps @ 720p + D1 (NTSC/ PAL)
Rate Control
CBR, CVBR, LBR, MJPEG
Resolution Range
Scalable from QCIF to 5 MP
SD Card Recording1
microSD/microSDHC/microSDXC 8 GB to 1 TB (Class 10)
Video Motion Detection
Yes
Visible Camera
Backlight Compensation
On / Off
Bandwidth
Configurable between 64 Kbps and 20 Mbps
Image Sensor
1/2.7-in CMOS
Lens Type
Motorized lens 2.7 mm to 12 mm, F1.6-F2.9
H-FOV: 102.14° (Wide); 31.53° (Tele)
V-FOV: 70.28° (Wide); 22.71° (Tele)
Mechanical IR Cut Filter
Yes
Noise Reduction
3D/2D/Color
Sensitivity
0.04 (color)/ 0.008 (BW, 0 Lux with IR illuminator ON, measured at 30 IRE
Sensor Resolution
2688 × 1944
Signal to Noise Ratio
±55 dB
White Balance
Auto / ATW / Manual / One Push
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.

Quasar Premium Mini-Dome AI - Model: Quad HD 5 MP (CM-6405-11-IA)
