High-Performance, 4K Low-Light Modular Camera with Edge AI Analytics

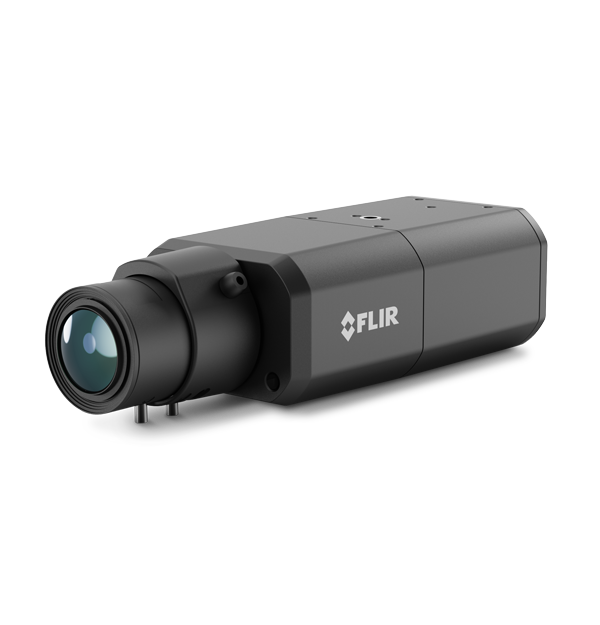

FLIR Quasar™ Premium Fixed Box AI

Go to Product Support
product image

The Quasar Premium Fixed Box AI camera features built-in Edge AI video analytics for reliable threat detection and event coverage with evidentiary detail, as well as high-performance low-light capabilities for nighttime security operations. Selectable lens options ensure optimal distance versus field of view coverage of reliable events. The camera’s 4K sensor produces detailed images 24/7, even in harsh light conditions, due to superior low light performance and wide dynamic range. The onboard Edge AI video analytics reduce false positives when detecting and responding to threats. NDAA-compliant and cybersecure, the Quasar Premium Fixed Box AI is a complete solution with United VMS and offers open integration with 3rd party VMSs.

  • True Day/Night Camera

    Ideal for challenging deployments found at commercial building security check-points, in critical infrastructure, and at tunnel entrances.

  • High-Performance with Detailed Imaging 24/7

    Onboard Edge AI video analytics offers reliable intrusion detection while reducing false positives and operating costs.

  • Rugged, Compact Design

    Reliable in a wide range of operating temperatures, the camera accepts specialized lens options for demanding applications.

Specifications
General
Automatic Electronic Shutter [AES]
1/1 to 1/32,000
Compression
Enhanced H.265 Main Profile + Enhanced H.264 <br> Main/High/Baseline Profile + MJPEG
Day/Night Mode
Yes
Digital Slow Shutter [DSS]
1/4–1/60 (NTSC)<br> 1/4–1/50 (PAL)
Dimensions
72 × 51 × 154 mm (2.96 × 2.05 × 6.05 in)
Enclosure
Metal
Firmware Upgrade
Flash memory for upgrade of camera firmware over the network
Input Voltage
24 VAC, 12 VDC, PoE 802.3af (class 0)
Power Connection
RJ45, DC, AC
Power Consumption
12.95 W
Privacy Zones
Yes
Scanning Mode
Progressive
Shutter WDR
130 dB
Tamper Detection
Yes
Unit Weight
Net weight: 455.5 g (1.01 lb)<br> Gross weight: 615.4 g (1.36 lb)
Warranty
According to FLIR RMA Policy and Process Notice document
Compliance & Certifications
International
CE marked, EN61000-6-3, EN62368-1, EN50130-4, CB62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A
MTBF [hrs]
526,279 (30°C); 149,537 (60°C)
ONVIF Compliance
Profiles S, G, M & T
USA
FCC Part 15 (subpart B, class A, ICES-003)
Cyber Security
AI Video Analytics
Person/face/vehicle <br>Intrusion: Region/tripwire <br>Object counting <br>Loitering <br>Stopped vehicle <br>Face detection <br>Abandoned object <br>Object removal <br>Wrong direction–corridor use <br>Camera sabotage <br>People counting
Security
Password protection, IP address filtering, TLS/HTTPS, IEEE 802.1X network access control, digest authentication, password policy, protect from multiple failure login
Environmental
Humidity
10%–90% (non-condensing)
Operating Temperature
-30°C to 60°C (-22°F to 140°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Measurement & Analysis
Analytics Management
Web-based configuration and management, adjustable sensitivity, automatic responses, remote I/O control
Sensor & Optical
Automatic Gain Control [AGC]
Yes
System Integration
Alarm In
2 Dry alarm contact 5 V with 10 KΩ pull up, 130 mA
Alarm Output
1 Relay Contact max. 400 V DC/AC, 130 mA
Bi-directional Audio
Line in and microphone built-in, G.711/G.726 /AAC/LPCM, 2-way line out
Ethernet
10/100/1000, IEEE 802.3, auto sensing 1 x RJ45
Network Protocol
IPV4/6, HTTP, HTTPS, ,UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP
Remote Configuration
Via web browser or supported video management software
Supported Web Browser
Firefox, Chrome, Edge, Safari
Video & Recording
Maximum Performance
H.264/H.265 30/25 fps @ 4K (NTSC/PAL) + 30/25 fps @ D1 <br> H.264/H.265 15/12 fps @ 4K + 1080p + D1 (NTSC/PAL)<br> H.264/H.265 60/50 fps @ 1080p + 30/25 fps @ 720p + D1 (NTSC/PAL)
Rate Control
LBR, CBR, VBR, MJPEG
Resolution Range
320 × 240 (CIF) to 3864 × 2180 (4K)
SD Card Recording1
microSD/microSDHC/microSDXC size up to 1 TB
Video Motion Detection
Yes
Visible Camera
Backlight Compensation
ON/OFF in linear mode
Bandwidth
Configurable between 64 Kbps and 20 Mbps
Image Sensor
1/1.8-in
Lens Type
CS Mount, Manual, DC-Iris & P-Iris (not included)
Mechanical IR Cut Filter
Yes
Noise Reduction
3D and 2D
Sensitivity
0.04 (color)/0.002 (BW)
Sensor Resolution
3864 × 2180 (4K)<br> Pixel size: 2.0 µm
Signal to Noise Ratio
±45 dB
White Balance
Auto/ATW/Manual/One Push
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
