3-Phase Power & Harmonics Analyzer

Extech PQ3350-3

Go to Product Support
product image

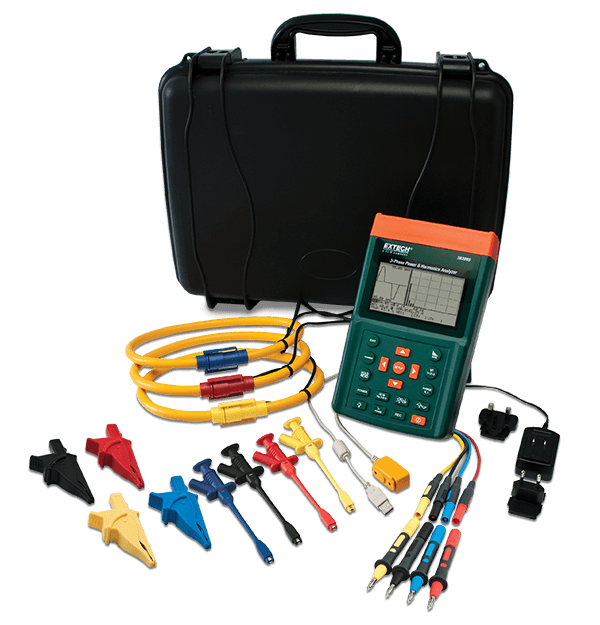

The Extech PQ3350-3 is a 3-Phase Power & Harmonics Analyzer capable of up to 52,428 single phase readings or 17,476 3-phase readings. It includes a large backlighting LCD that can display up to 35 parameters in one screen, and allows for the simultanious display of harmonics and waveform. For single and 3-phase/3-wire or 3-phase/4-wire systems. Complete with 4 voltage leads with alligator clips and retractable plunger clips, 8 AA batteries, universal AC adaptor, software, USB interface cable, and case. Current Probes sold separately.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
3000A
AC Current Basic Accuracy
±(0.5% of reading + 5 digits)
AC Voltage
600V
AC Voltage Basic Accuracy
±(0.5% of reading + 5 digits)
Active Power
9.999MW
Active Power Basic Accuracy
±(1% of reading + 8 digits)
Active Power Energy
0mWh to 999,999kWh
Apparent Power
9999kVA
Apparent Power Basic Accuracy
VA=Vrms x Arms
Crest Factor
1.00 to 99.99
Crest Factor Basic Accuracy
±(5% of reading + 30 digits)
Frequency
45-65Hz
Frequency Basic Accuracy
0.1Hz
Harmonics
1 to 99
Harmonics Basic Accuracy
±2%
Memory
52428 records (single phase); 17476 records (3 phase)
Peak AC Current Basic Accuracy
±(5% of reading + 30 digits)
Peak AC Voltage Basic Accuracy
±(5% of reading + 30 digits)
Phase
-180.0° to 0° to +180.0°
Phase Basic Accuracy
±1°
Power Factor
0.0 to +1.00
Power Factor Basic Accuracy
±(1.5%° of reading ± 8 digits)
Reactive Power
9999kVAR
Reactive Power Basic Accuracy
VAR= sqr (VA² -W² )
Reactive Power Energy
0.0kVARh to 1000MWh
True RMS
Yes
Additional Details
Certifications
CE
Dimensions
10.1 × 6.1 × 2.3" (257 × 155 × 57mm)
Power
8 × AA (1.5V) batteries
Safety Category
CATIII - 600V
Warranty
2 years
Weight
2.5 lbs (1160g)
