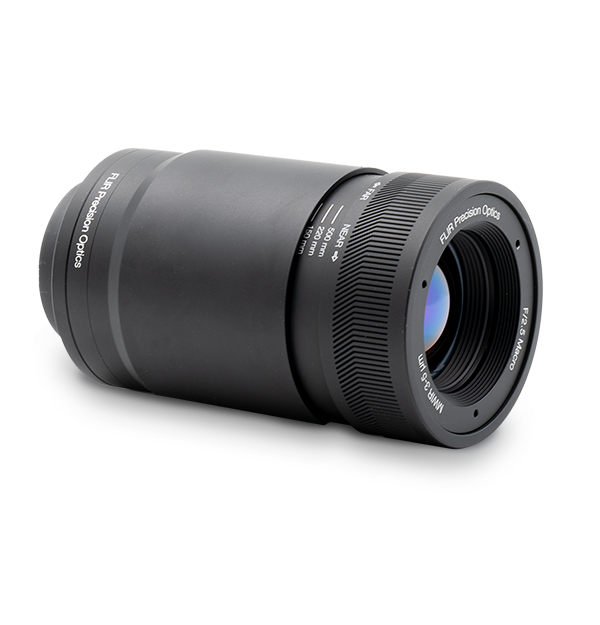

Macro 3-5 micron, f/2.5 MWIR FPO Manual Bayonet Lens (T300385)

Go to Product Support
product image

Macro 3-5 µm, f/2.5 MWIR FPO Manual Bayonet Lens for FLIR R&D/Science cameras, including A67xx MWIR, A85xx MWIR, X68xx MWIR, X69xx MWIR, and X85xx MWIR.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Environmental & Certifications
Operating Temperature Range
-20°C to 50°C (-4° to 122°F)
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
General
Average Transmission
> 85%
Weight
0.895 kg (1.97 lb)
Imaging & Optical
Diameter
76.5 mm (3.01 in)
F_number
2.5
Focal Length
27–40 mm (reimaging)
Focus Range
~110 mm to ~600 mm
Length
114.6–130.5 mm (4.51–5.14 in)
Imaging & Optical
Distortion
< 2%
Hyperfocal Distance
N/A
Spectral Band
3 - 5 µm
UI-UX
Focus Method
Manual
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
