Passive Component LCR Meter

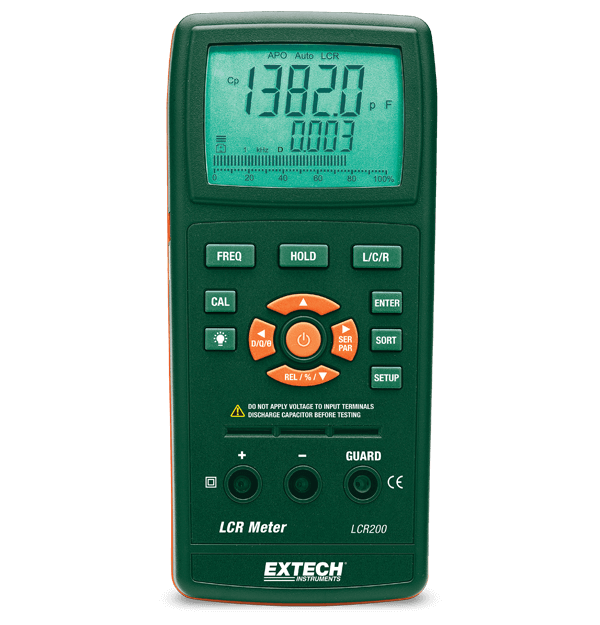

Extech LCR200

Go to Product Support
product image

The LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See simultaneous 20,000/2,000 count display of the primary parameter on the high contrast backlit display. You can set Hi/Lo limits using absolute values or percentages. Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and 9V battery.

$283.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
  • Measures Inductance, Capacitance, and Resistance

    Measures Inductance, Capacitance, and Resistance with secondary parameter Q (Quality), D (Dissipation), R (Resistance), P (Phase), ESR (Equivalent Series Resistance)

  • Simultaneous 20,000/2,000 Count Backlit Display

    Simultaneous 20,000/2,000 count backlit display of the primary parameter (L, C or R) with the secondary parameter

  • Open and Short Calibration

    Open and Short calibration removes unwanted stray impedances from the measurement

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Capacitance
20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2.0000mF, 20.00mF
Dissipation Factor (DF)
0.000 to 1999
Inductance
20µH, 200µH, 2000.0µH, 20.0000mH, 200.00mH, 2000.0H, 20.000H, 200.00H, 2000.0H
Inductance Basic Accuracy
±(0.5% of reading + 5 digits)
Phase
±90°
Quality Factor (Q)
0.000 to 1999
Resistance
20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ
Test Frequency
100Hz/120Hz/1kHz/10kHz/100kHz
Additional Details
Certifications
CE
Dimensions
7.6 × 3.5 × 1.6" (193 × 88 × 41mm)
Power
1 × 9V battery
Warranty
2 years
Weight
14.8oz (420g)
