Insulation Tester and Digital Multimeter with METERLiNK®

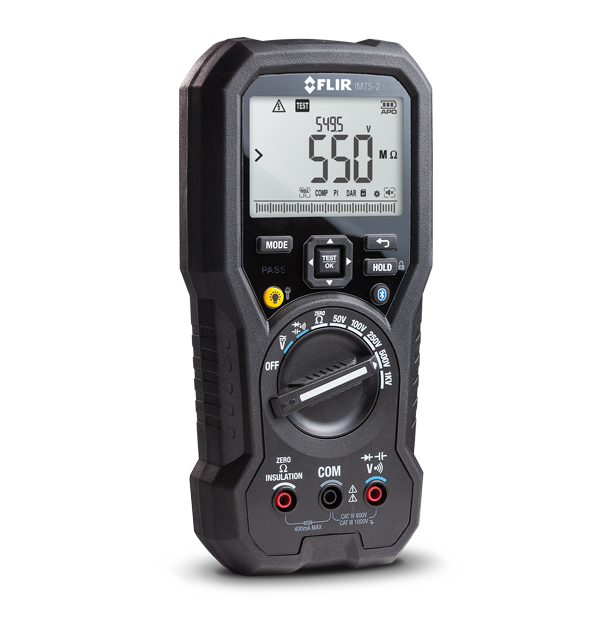

FLIR IM75-2

Go to Product Support
product image

The FLIR IM75-2 is both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals. The FLIR IM75-2 includes several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance. Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment. The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

$679.00
$549.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
  • Advanced Insulation Testing

    • Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
    • Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 MΩ to 20 GΩ
    • Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
    • True RMS DMM measurements features reliable performance and 1000 V range

  • Built Tough for Demanding Work Conditions

    • Constructed to make any electrical problem easier to troubleshoot
    • Powerful LED worklights eliminate the need for a flashlight in dim lighting
    • Durable, double-molded construction with IP54 rating and 3 m drop tested
    • Large, easy-to-read digits and backlit display
    • Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible

  • App Connectivity to Support Your Workflow

    • Wireless communication with the FLIR METERLiNK® App
    • Capture readings, create reports and easily share them with your team
    • Perform measurement comparisons over time
    • Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures






get inspection information to the people you need

FLIR METERLiNK® App

The FLIR METERLiNK® app allows you to monitor a variety of environmental and electrical conditions simultaneously with the ability to connect with up to seven FLIR compatible meters at once. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.

Learn More

Specifications
Insulation Resistance
4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
Insulation Test Voltages
50 V for max. 50.0 MΩ
100 V for max 100.0 MΩ
250 V for max. 250.0 MΩ
500 V for max. 500.0 MΩ
1000 V for max.20 GΩ
Category Rating
CAT IV-600 V, CAT III-1000 V
Measurement & Analysis
AC Voltage
1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),
61 Hz to 500 Hz ± (2.0% + 5 digits)
Capacitance
1000 µF ± (1.2% + 2 digits)
10.00 mF ± (1.2% + 20 digits)
Category Rating
CAT IV-600 V, CAT III-1000 V
Continuity
400.0 Ω ± (0.5% + 2 digits)
DC Voltage
1000.0 V ± (0.1% + 5 digits)
Earth Bond Resistance
40.00 Ω ± (1.5% + 5 digits)
400.0 Ω ± (1.5% + 3 digits)
4000 Ω ± (1.5% + 3 digits)
40.00 kΩ ± (1.5% + 3 digits)
Frequency [ACV]
400.0 Hz ± 5 digits
4.000 kHz ± 5 digits
40.00 kHz ± 5 digits
Insulation Resistance
4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
Insulation Test Voltages
50 V for max. 50.0 MΩ
100 V for max 100.0 MΩ
250 V for max. 250.0 MΩ
500 V for max. 500.0 MΩ
1000 V for max.20 GΩ
VFD AC Voltage
1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),
61 Hz to 400 Hz, ± (5.0% + 5 digits)
Communication & Data Storage
Bluetooth range max
10 m (32 ft)
Memory
99 storage locations
Power
Battery Type
6 × 1.5 V AAA alkaline batteries
Environmental & Certifications
Certifications
FCC Class B, CE, UL, UKCA, RCM
Drop test
3 m (9.8 ft)
IP Rating
IP54 dust-protected and splash-resistant
Operating Temperature
0°C to 50°C (32°F to 122°F)
Warranty
https://www.flir.com/testwarranty
