Remote Monitoring Gateway

FLIR GW66

Go to Product Support
product image

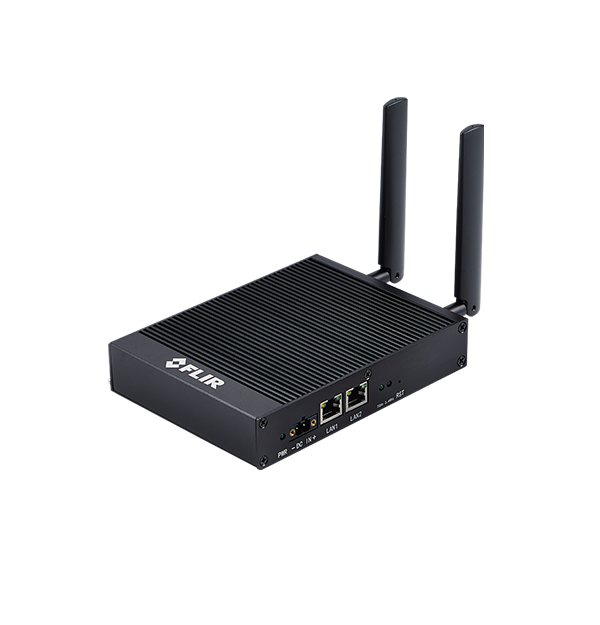

The FLIR GW66 Remote Monitoring Gateway is part of the FLIR SV88™ and SV89™ Vibration Monitoring Solution Kits. It receives vibration and temperature data from SV88 and SV89 sensors and sends data to the built-in webserver and CBM.

The GW66 gateway also stores the data to its internal memory in case of Wi-Fi outage.

For more information on the FLIR SV88 or SV89 Vibration Monitoring Solution Kits, please visit flir.com/SV88-KIT or SV89-KIT.

$499.00

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Specifications
Communication & Data Storage
Communication Protocol
MQTT, Modbus, OPC UA
Ethernet
LAN, WAN
1 x 10/100/1000 Base-TX MDI/MDIX for LAN 1 x 10/100/1000 Base-TX MDI/MDIX for WAN
Memory
DDR3L 512 MB
Output Data
Vibration analysis data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT
Processor
ARM Cortex-A7
Storage
32 MB NOR Flash
Wi-Fi Type
IEEE 802.11 b/g/n
Environmental & Certifications
Operating Temperature Range
25°C to 65°C (-13°F to 149°F)
Relative Humidity
10% to 95% relative humidity, non condensing
Storage Temperature Range
25°C to 65°C (-13°F to 149°F)
General
Operating System
Built-in webserver (Linux)
Size (L x W x H)
57.3 × 39.3 × 46.1 mm (2.25 × 1.55 × 1.81 in)
Weight
645 g (22.75 oz)
Measurement & Analysis
AC Input
TA87 universal power adapter: 100 V to 240 V AC, 50/60 Hz (optional)
Power
LED Indicators
WAN, LAN, 2.4 GHz, 5GHz, dual band, dual concurrent
Power Input
12 VDC
Power over Ethernet (PoE)
802.3 at standard PoE (PD) @ WAN port
Related Products
Applicable Products
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
