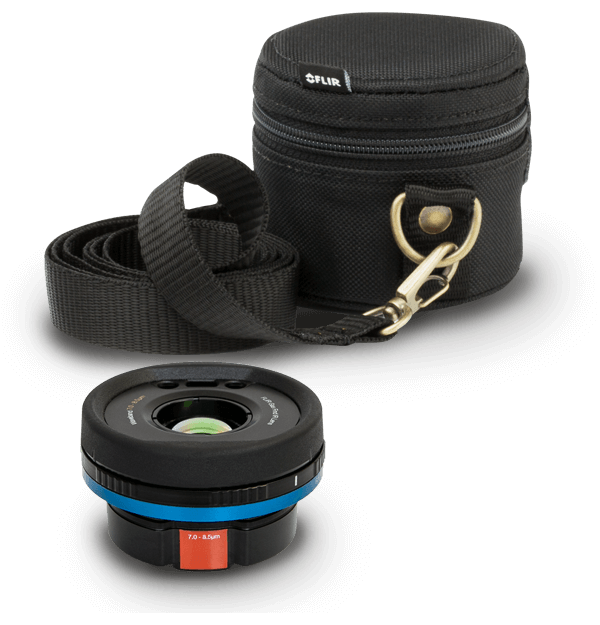

FLIR IR lens LR (7–8.5 µm) with case

Model: FLIR IR lens 25° LR (7–8.5 µm) with Case (T300115) Go to Product Support

product image

Exclusively for the GF77 Gas Find IR camera to detect methane, nitrous oxide, sulfur dioxide, R-134a, and R152a. Available in 25° or 6° lens options.

Product Variations:

$7,599.00

Contact Sales

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications

General

Contents: Lens, lens case

Packaging Type: Cardboard box

Packaging Weight: 0.410 kg (0.90 lb)

Imaging & Optical

Compatible cameras: GF77

Minimum Focus Distance with MSX: 0.65 m (2.1 ft)

Other

Detects Following Gases: Methane, nitrous oxide, sulfur dioxide, R-134a and R-152a

System Overview

Size: 45.4 × 72 mm (1.79 × 2.83 in)

Thermal Camera

Lens Identification: Automatic

Spatial resolution (IFOV): 1.4 mrad/pixel

Visible Camera

Field of view (FOV): 25° × 19°

f-number: 1.04

Minimum Focus Distance: 0.3 m (0.98 ft)

Applicable Products

Learn More
FLIR GF77

FLIR IR lens LR (7–8.5 µm) with case - Model: FLIR IR lens 25° LR (7–8.5 µm) with Case (T300115)
