Expansion Board for Connecting Extra Detection Outputs/Inputs to Controller

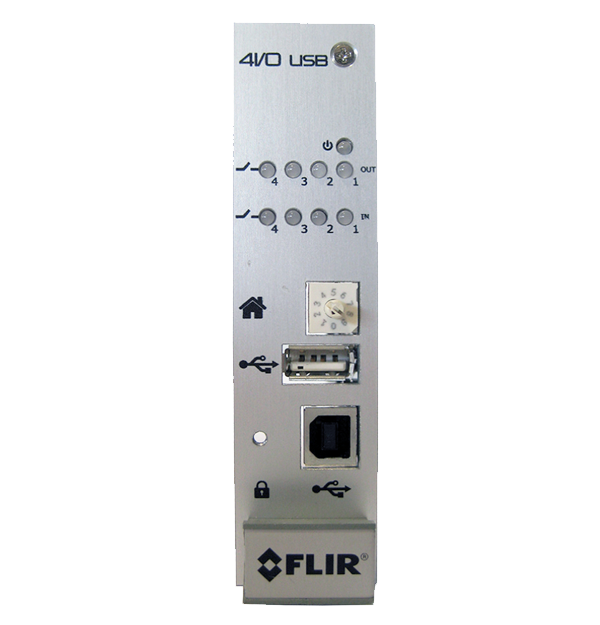

Expansion Board 4 I/O USB

Go to Product Support
product image

• Expansion Board is used to connect extra detection outputs and/or inputs to controller
• Provides 4 extra optical coupled dry contacts per 4 I/O USB via EDGE connector (back, F/H, W/X, S/T, Y/Z)
• Compatible with the TI BPL3 EDGE (PN: 10-7722) and TI BPL2 EDGE (PN: 10-7018)

Specifications
Communications
Ethernet
2 × RJ45 Ethernet connectors (10/100Mbit/s auto switching)
Input
4 input contacts via EDGE connector (back, pins 1, 2, 3, 10)
4 input LEDs (front, green)
Note: max. 20 extra detection outputs/inputs can be added via maximum 5 4 I/O USB units
Note: Channel selector switch on PCB to enable inputs/outputs 5-8, 7-10, …, 21-24
Output
4 extra optical coupled dry contacts per 4 I/O USB via EDGE connector (back, F/H, W/X, S/T, Y/Z)
Imax = 50mA, Umax = 48 V DC
Close on event or open on event (setting in software)
4 output LEDs (front, green)
Detection output 1-4 and common detection output
Electrical
Power
Power IN: 5 V DC via USB/B connector (front) Power provided by TI BPL3 EDGE/TI BPL2 EDGE (USB/A connector, front), power LED (front, bi-color green/red)
Power IN: None
Power consumption: ≤700 mW
Current consumption: ≤140 mA @ 5 V DC
Environmental
Operating Temperature
NEMA II specs: -34°C to +74°C (-29.2°F to 165.2°F)
Shock & Vibration
FCC: FCC Part 15 class B
Shock & Vibration NEMA II specs
Mechanical
Dimensions
115 mm × 29.5 mm × 191 mm (4.53 in × 1.16 in × 7.52 in)
Standard US EDGE rack height & depth; width = single slot)
Weight
100 g (3.5 oz)
Applicable Products
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
