12 Function True RMS Multimeter + NCV

Extech EX355

Go to Product Support

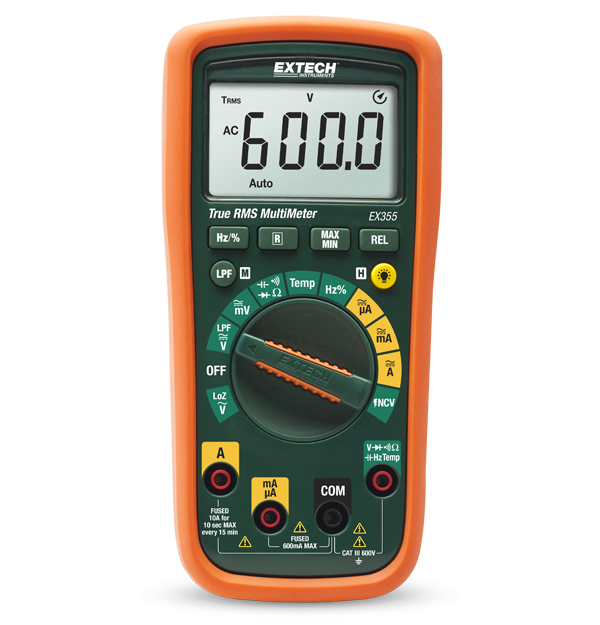

product image

The EX355 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 6000 count LCD display, data hold, min-max, relative mode, capacitance zero, auto power off, continuity and diode test. This meter will measure AC/DC voltage to 600 V and AC/DC current to 10 amps. Complete with test leads, general purpose bead wire temperature probe, manual and two AA batteries.

$106.99
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
0.1µA to 10.00A
AC Voltage
0.01mV to 600V
Capacitance
1pF to 60.00mF
Continuity
Audible
DC Current
0.1µA to 10.00A
DC Voltage
0.01mV to 600V
DC Voltage Basic Accuracy
±0.5%
Diode Test
3.2V
Duty Cycle
0.1 to 99.9%
Frequency
0.001Hz to 10MHz
Non-Contact Voltage (NCV) Detector
Yes
Resistance
0.1Ω to 60.00MΩ
Temperature (Type K) Max Resolution
-40 to 1832°F (-40 to 1000°C)
True RMS
Yes
Additional Details
Certifications
CE, UL
Dimensions
6.7 × 3.2 × 1.9" (175 × 81 × 48.5mm)
Display
6000-count segment LCD
Power
2 × AAA (1.5V) batteries
Safety Category
CATIII - 600V
Warranty
3 years
Weight
13.1oz (370g)
