HVAC/R Environmental Meter

FLIR EM54

Go to Product Support
product image

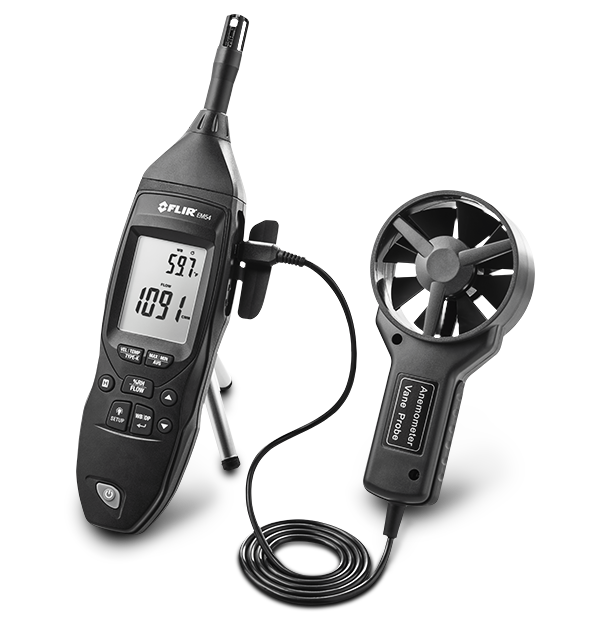

The FLIR EM54 is ideal for inspecting and troubleshooting HVAC/R ducting systems within residential, commercial, and industrial facilities. This meter can help you verify that duct inlets and outlets have the specified volumetric flow – a prerequisite to an efficient functional system. Featuring humidity, wet bulb, and dew point functions, the EM54 can measure deviations from proper relative humidity levels. Plus, the included Type-K contact temperature probe is useful to check electric motors and thermal equipment components for proper operating temperatures.

$261.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
  • ACCURATE AND RELIABLE

    Receive high-quality data consistently, and work without interruption. Using the tripod, place the meter away from objects that may influence relative humidity measurements.

  • INSPECT AND TROUBLESHOOT EFFICIENTLY

    Work on a wide range of systems more efficiently using the contact temperature probe and wet bulb/dew point calculations.

  • EASY TO USE

    Intuitively operate this simple, ergonomic meter with a backlit display, a ‘hold’ function that freezes readings, and well-marked function keys.

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Air Velocity (Vane Anemometer Probe)
0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots
Air Flow
0 to 999900 CMM (0 to 999900 CFM)
Air Temperature
10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F)
Relative Humidity
5% to 98% ±3.5%
Dew Point
-30 to 60°C (-22 to 140°F), ±3°C (4.8°F)
Wet Bulb (Calculated)
-30 to 50°C (-22 to 122°F), ±3°C (4.8°F)
Measurement & Analysis
Air Temperature
10 to 30°C (50 to 86°F), ±1°C (1.8°F); -30 to 9.9°C (-22 to 50°F) and 31 to 60°C (88 to 140°F), ±2°C (3.6°F)
Air Velocity (Vane Anemometer Probe)
0.4 to 30 m/s, ±3% +0.2 m/s ; 79 to 5906 ft/min, ±3% +40 ft/min; 1.4 to 108 km/h, ±3% +0.8 km/h; 0.9 to 67.2 mph, ±3% +0.4 mph; 0.8 to 58.3 knots, ±3% +0.4 knots
Contact Temperature Type K thermocouple
-99.9 to 99.9°C (-148 to 212°F), ±1.5% +1°C (1.8°F); 100 to 1372°C (212 to 2502°F), ±1.5% +2°C (3.6°F)
Dew Point
-30 to 60°C (-22 to 140°F), ±3°C (4.8°F)
Relative Humidity
5% to 98% ±3.5%
Wet Bulb (Calculated)
-30 to 50°C (-22 to 122°F), ±3°C (4.8°F)
Imaging & Optical
Display Type
Backlit, multifunction LCD
Power
Auto Power Off (APO)
Configurable from 5 to 60 min in 8 increments
Battery Life
120 hours typical
Battery status indicator
Low battery indication
Battery Type
1x 9 V
General
Air Flow
0 to 999900 CMM (0 to 999900 CFM)
Anemometer Body Length
150 mm (5.9 in)
Anemometer Cable Length
950 mm (37.4 in)
Anemometer Vane Diameter
70 mm (2.8 in)
Dimensions (L x W x H)
275 × 65 × 45 mm (10.8 × 2.6 × 1.8 in)
Housing material
Impact-resistant plastic
Includes
Vane anemometer probe, Type-K thermocouple probe, soft carrying pouch, 9 V battery, tripod mount
Weight
283.9 g (10 oz) with battery installed, no external probes
Environmental & Certifications
Certifications
CE, RCM
Drop test
1 m (3.3 ft), not including removeable probes
Operating Temperature
0 to 50°C (32 to 122°F)
Storage Temperature Range
-10 to 60°C (14 to 140°F)
Warranty
Limited 3 years
