Advanced Thermal Imaging Camera

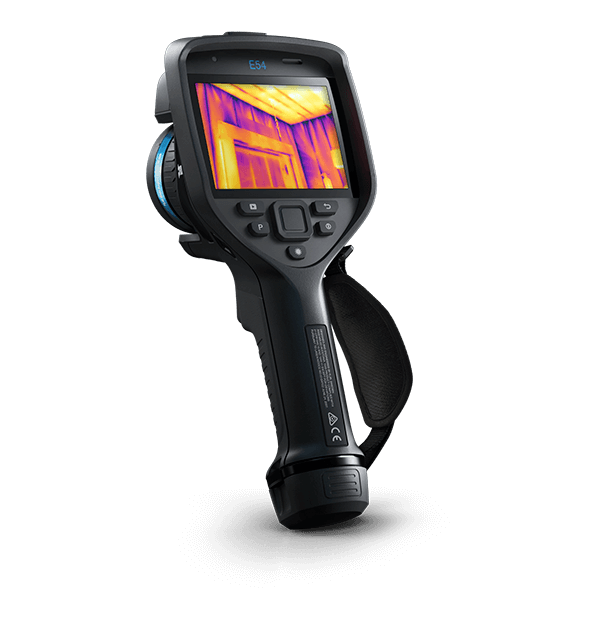

FLIR E54

Model: FLIR E54 24° Go to Product Support
product image

Many options in stock & ready to ship!

The FLIR E54 offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection. The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX®technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing.

$5,900.00
$4,499.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

Enhanced Resolution, Faster Inspections

  • Improved Contrast for Faster Troubleshooting

    Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.

  • Features to Help with Diagnosis

    The E54 measures up to 650°C (1202°F), offers 3 spotmeters, and displays the max/min temperature within an area live, on-screen.

  • Streamlined Reporting

    Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E54 streamline your workday. (*Optional accessory software)

FLIR Ignite™ for Exx-Series

FLIR Ignite™ for Exx-Series

Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR Exx-Series camera. Keep your data safe in one place and easily accessible from any device.

Don't Have Ignite?

FLIR Exx-Series cameras purchased prior to December 2021 may not include the FLIR Ignite cloud connection. You can add it to your camera for free with a firmware upgrade available here.



thermal-studio-pro-Exseries.pngProfessional Reports that Help Your Customer and Your Business

The right image analysis and reporting software can greatly improve your business by making it easier for you and your customers to understand the problem and feel confident that you fixed it.

The advanced analysis and decision-making support offered in FLIR Thermal Studio Pro includes a rich set of measurement tools, batch processing, the ability to pre-plan inspection routes, and customized report templates.




maintenance page_repair.jpg

flir care logo.png     flir protect logo.png

Never Worry About Your Camera Performance Again

Keep your camera going strong with FLIR CARE and FLIR PROTECT. FLIR CARE provides world-class calibration with performance verification and traceable calibration adjustment services that ensure your thermal data is always accurate. FLIR PROTECT extended warranty and service packages provide a full three years of coverage beyond the respective camera’s factory warranty. FLIR PROTECT customers can also receive a bundled calibration service, discounts on additional services, and options for fast-delivered loaner cameras.

Learn More


ITC_Logo_Primary.pngBecome a Thermal Studio Expert

Learn to edit images, analyze them, and produce custom reports using FLIR Thermal Studio Suite software with online training from the Infrared Training Center. This virtual class covers everything you need to know, including:

  • How to adjust image parameters and optimize thermal contrast
  • How to create batch functions for image processing
  • How to design a new report template

Thermal Studio Training



Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
IR Resolution
320 × 240 pixels
Thermal Sensitivity/NETD
<40 mK at 30°C (86°F)
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Digital Camera
5 MP, with built-in LED photo/video lamp
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media
Removable SD card
Imaging & Optical
Color Palettes
Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch
Uncooled microbolometer, 17 µm
Digital Camera
5 MP, with built-in LED photo/video lamp
Digital Zoom
1-4× continuous
f-number
1.3
Focus
Manual
Image Frequency
30 Hz
IR Resolution
320 × 240 pixels
Lens Identification
NA
Minimum Focus Distance
0.15 m
Non-radiometric IR video streaming
H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture
Centered infrared area on the visual image
Radiometric IR video recording
Real-time radiometric recording (.csq)
Radiometric IR video streaming
Yes, over UVC
Spectral Range
7.5-14 µm
Thermal Sensitivity/NETD
<40 mK at 30°C (86°F)
UltraMax
No
Viewfinder
No
Measurement & Analysis
Accuracy
±2°C (±3.6°F) or ±2% of the reading
Measurement Presets
No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
Object Temperature Range
-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
Spot Meter
3 ea. in live mode
User Interface
Display
4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text
Predefined list or touchscreen keyboard
Voice
60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
Power
Battery operating time
> 2.5 hours at 25°C (68°F) and typical use
Battery Type
Rechargeable Li-ion battery
Environmental & Certifications
Operating Temperature Range
-15 to 50°C (5 to 122°F)
Safety
EN/UL/CSA/PSE 60950-1
Storage Temperature Range
-40 to 70°C (-40 to 158°F)
General
FLIR Inspection Route
Enabled in camera
Laser Pointer
Yes
Packaging
Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C).
