80W Switching Mode DC Power Supply

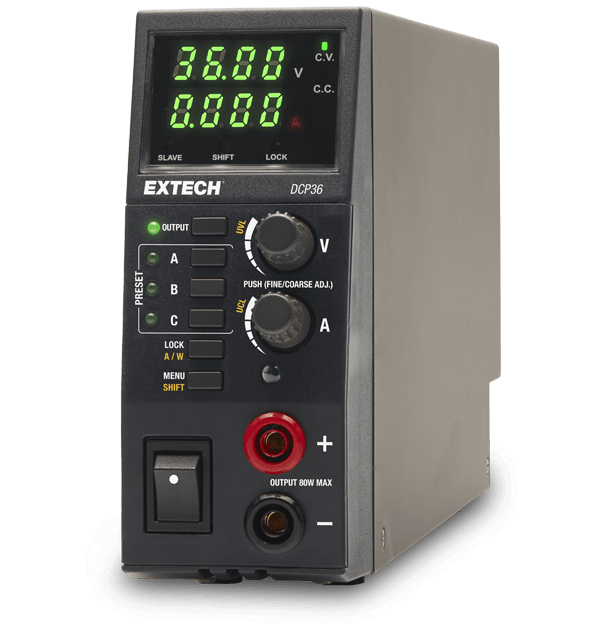

Extech DCP36

Go to Product Support
product image

Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.

$372.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Line Current Regulation
≤10mA
Line Voltage Regulation
≤4mV
Load Current Regulation
≤10mA
Load Voltage Regulation
≤30mV
Output Current
0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W)
Output Current Basic Accuracy
±(0.5% + 5 counts)
Output Voltage
0.5 to 36V
Output Voltage Basic Accuracy
±(0.5% + 5 counts)
Ripple and Noise
≤35m Vp-p
Additional Details
Certifications
CE
Dimensions
13 × 5 × 2" (330 × 127 × 53.5 mm)
Warranty
2 years
Weight
4.2 lbs (1.9 kg)
