Science-Grade MWIR InSb Camera

FLIR A6700 MWIR

Model: A6703 MWIR Go to Product Support
product image

Designed for electronics inspections, manufacturing monitoring, scientific research, and non-destructive testing, the FLIR A6700 MWIR camera is ideal for high-speed thermal events and fast-moving targets. Short exposure times allow users to freeze motion and achieve accurate temperature measurements. In fact, the camera’s image output can be windowed to increase frame rates to 480 frames per second to accurately characterize even higher speed thermal events, helping ensure critical data doesn’t get missed during testing.

Sales Contact Contact Sales
  • Crisp Thermal Images

    FLIR A6700 operates in the 3.0–5.0 µm waveband (1.0–5.0 µm broadband option) and produces finely-detailed, 327,680 pixel images.

  • Fast Integration Times

    Snapshot mode lets you capture every pixel from a scene simultaneously, which is crucial to measuring temperatures of fast-moving objects.

  • Standard Video Interfaces

    Gigabit Ethernet and analog video are simultaneously active yet independently controlled allowing greater flexibility for recording and display purposes.

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
Resolution
640 × 512
Pixel Size [Square]
15 µm
Spectral Range
3.0 – 5.0 µm
Detector Type
FLIR indium antimonide (InSb)
Camera f-number
f/4.0
Frame Rate [Full Window]
Programmable; 0.0015 Hz to 60 Hz
Integration Time
480 ns to ~full frame
Standard Temperature Range [with band matched optics]
-20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes
Optional Temperature Range [with band matched optics]
45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3)
Filter Holder [Warm]
Behind lens mount for standard 1 inch diameter filters
Focus
Manual
Imaging & Optical

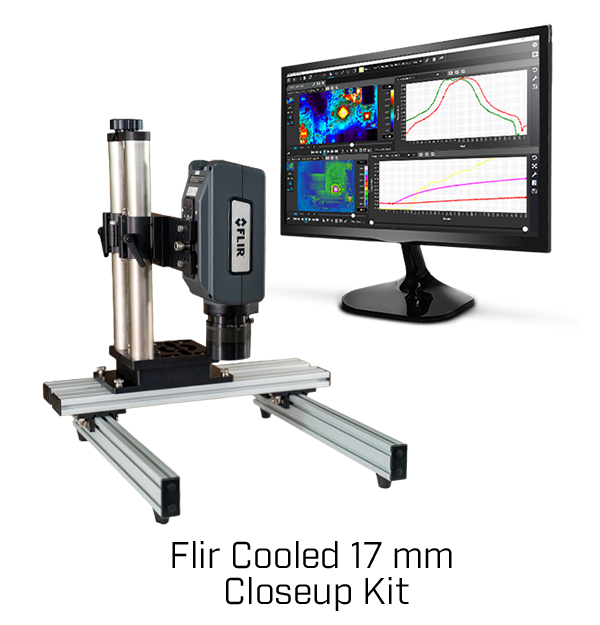

Available Lenses
17 mm, 25 mm, 50 mm, 100 mm, 200 mm
Camera f-number
f/4.0

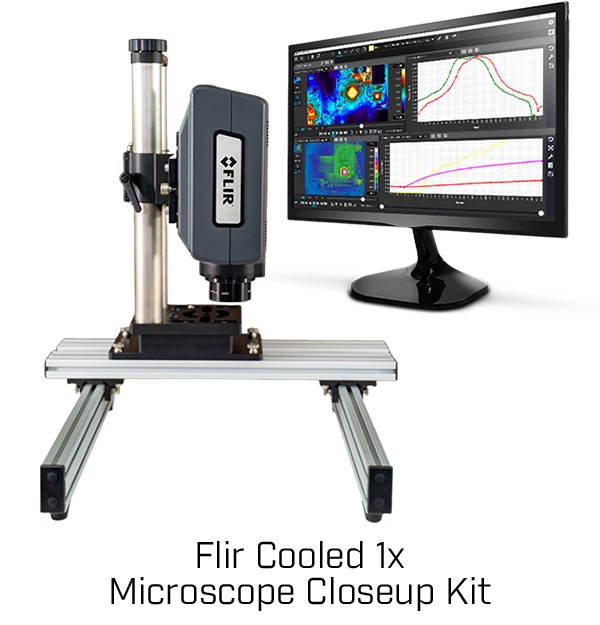

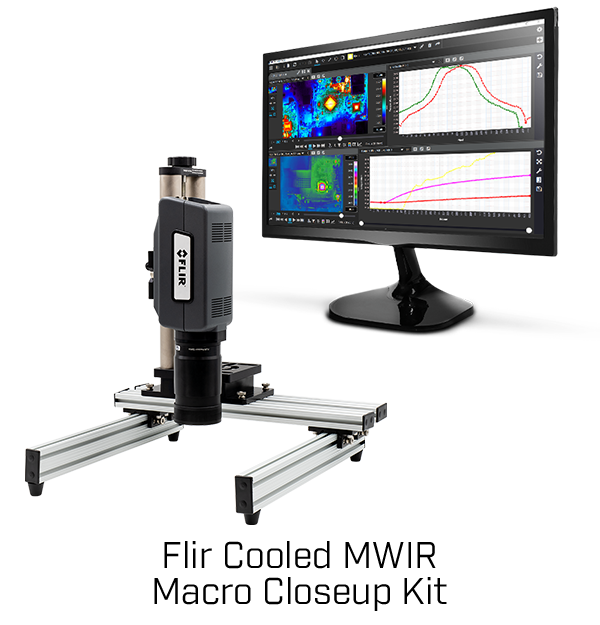

Close-up Lenses/Microscopes
1X, 3X
Filter Holder [Warm]
Behind lens mount for standard 1 inch diameter filters
Image Time Stamp
Yes
Integration Time
480 ns to ~full frame
On Camera Image Storage
None
Overlay
Fixed configuration, can be turned off
Pixel Clock
50 MHz
Pixel Size [Square]
15 µm
Radiometric Data Streaming
Gigabit Ethernet (GigE Vision)
Readout Modes
Asynchronous integrate while read; asynchronous integrate then read
Readout Type
Snapshot
Sensor Cooling
Closed-cycle rotary
Standard Video
SDI
Standard Video Zoom
Automatic, variable
Subwindow Modes
Full, half, and quarter window
Thermal Sensitivity_NETD [typical]
≤20 mK typical
Video Modes
SDI: 720p@50/59.9, 1080p@25/29.9
Measurement & Analysis
Ambient Drift Compensation [with factory cal]
Yes
Optional Temperature Range [with band matched optics]
45°C to 600°C/113°F to 1112°F (ND1); 250°C to 2000°C/482°F to 3632°F (ND2); 500°C to 3000°C/932°F to 5432°F (ND3)
Standard Temperature Range [with band matched optics]
-20°C to 350°C (-4°F to 662°F), -10°C (50°F) for microscopes
General
Size [L x W x H ] w/o Lens
226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in.)
Related Content
Accessories
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
