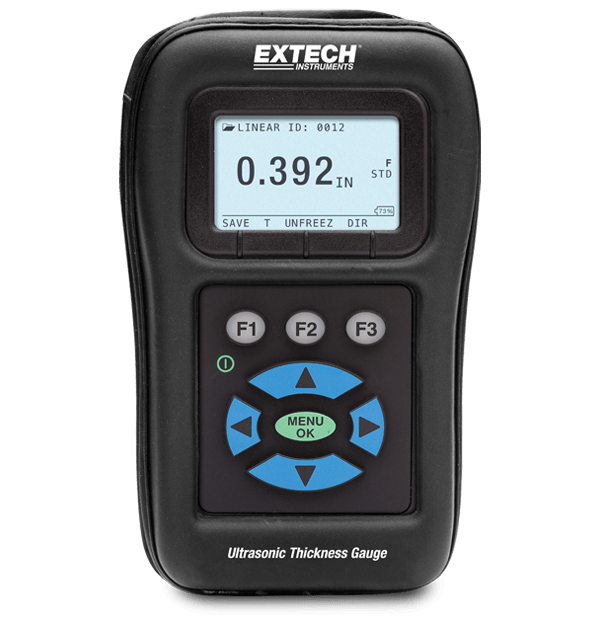

Digital Ultrasonic Thickness Gauge/Datalogger

Extech TKG150

Go to Product Support
product image

The Extech TKG150 is a Digital Ultrasonic Thickness Gauge/Data logger. The compact, rugged meter allows for non-destructive thickness measurements. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Alarm
Audible beeping; illuminae flashing display and keypad; and vibration feedback
B-Scan (Cross Section)
Displays a visual cross section of inspection area with no correlation to distance
Differential Mode
Displays the difference from the actual thickness measurement and a user entered reference value
Echo to Echo
Measure the metal thickness only (paint and coatings do not affect base material thickness value)
Gain
Low, Standard, High
Material Velocity Calibration
0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS)
Memory
Stores 50k readings (expandable to 100k) and 5,000 waveforms
Steel Thickness
5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
Velocity Mode
Displays acoustic sound speed to measure thickness of unknown materials
Additional Details
Certifications
CE
IP Rating
IP54
Power
2 × AA (1.5V) batteries
Warranty
2 years
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
