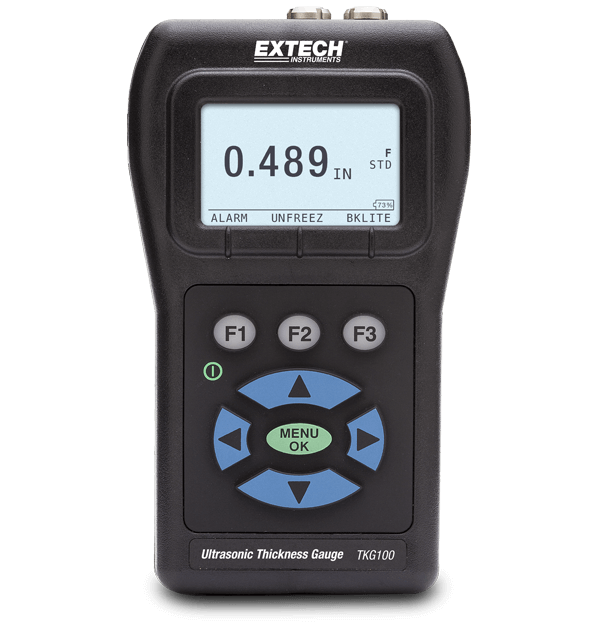

The Extech TKG100 offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It includes multiple transducer options for high temperature and difficult to measure materials. Complete with 2oz bottle of coolant, 2 AA batteries, 5 MHz Transducer, and hard carrying case.
- Products
- Test & Measurement
- Industrial Imaging & Inspection
- Thickness Gauges
- Extech TKG100
Added to cart
Contact Sales
Contact Sales
Want more information on this product?
Call +1 (866) 477-3687 to speak with a knowledgeable specialist.
Specifications
General Specifications
- Material Velocity Calibration
- 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS)
- Steel Thickness
- 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
Additional Details
- Certifications
- CE
- IP Rating
- IP54
- Power
- 2 × AA (1.5V) batteries
- Warranty
- 2 years
