Vibration Meter/Datalogger

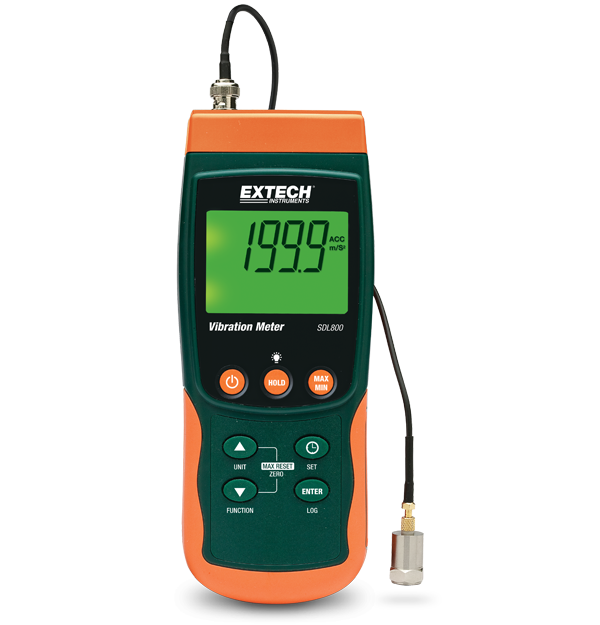

Extech SDL800

Model: SDL800 Go to Product Support
product image

The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.

$1,169.00

Available for purchase on credit terms. Learn More

Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Acceleration
656ft/s², 200m/s², 20.39g
Acceleration Basic Accuracy
±(5% of reading + 2 digits)
Acceleration Max Resolution
1ft/s², 0.1m/s², 0.01g
Displacement
0.078in, 2mm (peak-to-peak)
Displacement Basic Accuracy
±(5% of reading + 2 digits)
Displacement Max Resolution
0.001in, 0.001mm
Memory
20M data records using 2G SD card
Velocity
7.87in/s, 200mm/s, 19.99cm/s
Velocity Basic Accuracy
±(5% of reading + 2 digits)
Velocity Max Resolution
0.01in/s, 0.1mm/s, 0.01cm/s
Additional Details
Certifications
CE
Dimensions
7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm)
Power
6 × AA (1.5V) batteries
Warranty
3 years
Weight
21.1oz (599g)
