3000A Datalogging Power Analyzer Kit

Extech PQ3450-30

Model: PQ3450-30 Go to Product Support
product image

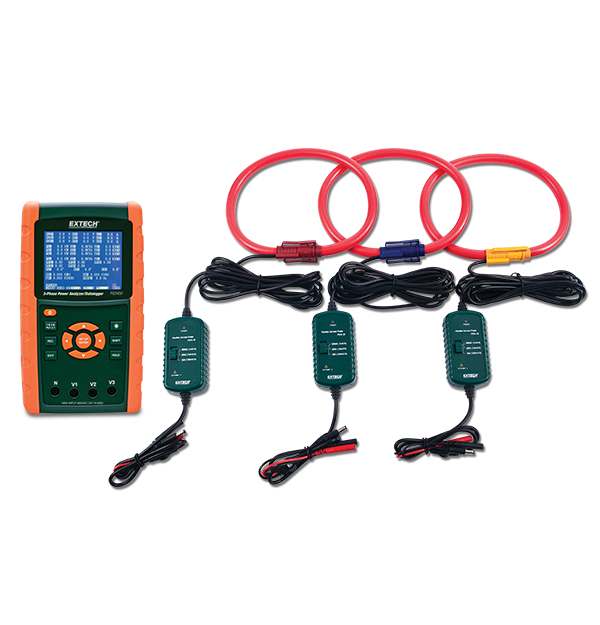

The Extech PQ3450-30 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel® format on a removable SD memory card. It includes a large dot-matrix, built-in clock and calendar, and a backlit LCD with easy-to-use onscreen menu. It allows for full system analysis with up to 35 parameters. The adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio allows for high power distribution systems. Log up to 30,000 reading on a removable SD memory card in Excel® format. Wide sampling rate range (2 seconds to 2 hours). Complete with 4 voltage leads with alligator clips, three 3000 A current clamps, 8 AA batteries, SD card, 100-240 V AC adapter, and case.

Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
3000A
AC Current Basic Accuracy
±(0.5% of reading)
AC Voltage
600.0V
AC Voltage Basic Accuracy
±(0.5% of reading)
Active Power
9.999MW
Active Power Basic Accuracy
±(1.0% of reading)
Active Power Energy
0.0kWh to 9.999MWH
Active Power Energy Basic Accuracy
±(2.0% of reading)
Apparent Power
9.999MVA
Apparent Power Basic Accuracy
±(1.0% of reading)
Apparent Power Energy
0.0KVAh to 9.999MVAH
Apparent Power Energy Basic Accuracy
±(2.0% of reading)
Frequency
45Hz to 65Hz
Frequency Basic Accuracy
±0.1Hz
Input Range
200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable)
Input Range Basic Accuracy
±(0.5% of reading)
Memory
30,000 readings (2GB SD memory Card)
Phase
-180 ° to +180°
Phase Basic Accuracy
±1°
Power Factor
0.00 to 1.00
Power Factor Basic Accuracy
±0.04
Reactive Power
9.999MVAR
Reactive Power Basic Accuracy
±(1.0% of reading)
Reactive Power Energy
0.0kVARh to 9.999MVARH
Reactive Power Energy Basic Accuracy
±(2.0% of reading)
True RMS
Yes
Additional Details
Certifications
CE, UL
Dimensions
8.86 × 4.92 × 2.52" (225 × 125 × 64mm)
Power
8 × AA (1.5V) batteries
Safety Category
CATIII - 600V
Warranty
2 years
Weight
2.2lbs (1010g)
