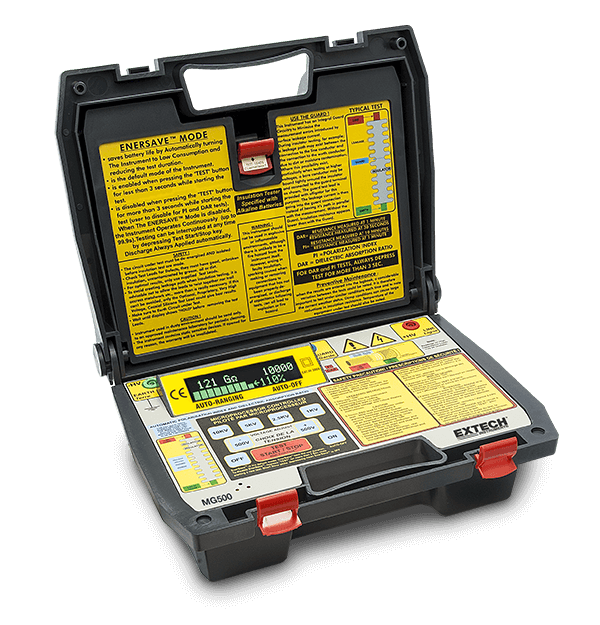

Digital High Voltage Insulation Tester

Extech MG500

Go to Product Support
product image

The MG500 is a digital high voltage insulation tester that tests voltage up to 10kV and measures insulation resistance to 500GOhm. The MG500 has a CAT III 300 Volt safety rating. This product is complete with a year warranty, built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries.

$1,749.00
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Automatic Discharge
Yes
Dielectric Absorption Ratio
Yes
Insulation Resistance
800kΩ to 500GΩ
Insulation Resistance Basic Accuracy
±5%
Insulation Resistance Max Resolution
1kΩ
Insulation Test Voltage
500VDC to 10kVDC (adjustable in 500V steps)
Polarization Index
Yes
Additional Details
Certifications
CE
Dimensions
13 × 10.2 × 6.3" (330 × 260 × 160mm)
Power
8 × C (1.5V) batteries
Safety Category
CATIII - 300V
Warranty
2 years
Weight
7.9lbs (3.6kg)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
