Heavy Duty Vibration Meter

Extech 407860

Model: 407860 Go to Product Support

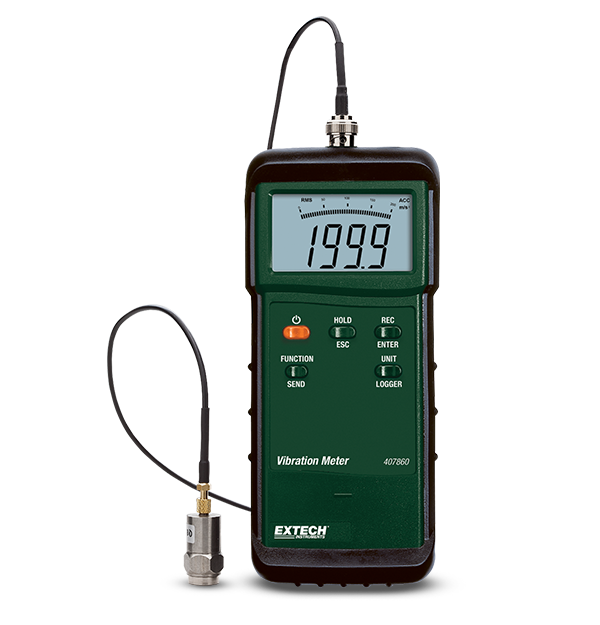

product image

407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual store with recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with remote sensor, magnetic mount, 9V battery, holster with stand, and case.

$1,019.00
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales

  • Measure Acceleration, Velocity, and Displacement

    Ranges - Acceleration: 200m/s², Velocity: 200mm/s, Displacement: 2mm

  • Remote Vibration Sensor

    Remote vibration sensor with magnetic adapter on 39" (1m) cable

  • Complete Kit

    Complete with remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case

Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
Acceleration
656ft/s² (200m/s²)
Acceleration Basic Accuracy
±5%
Acceleration Max Resolution
2ft/s² (0.5m/s²)
Displacement
0.078in (1.999mm)
Displacement Basic Accuracy
±5%
Displacement Max Resolution
0.001in (0.001mm)
Velocity
7.87in/s (200mm/s)
Velocity Basic Accuracy
±5%
Velocity Max Resolution
0.02in/s (0.5mm/s)
Additional Details
Certifications
CE
Dimensions
7.1 × 2.9 × 1.3" (180 × 72 × 32mm)
Power
1 × 9V battery
Warranty
3 Years
Weight
0.87lbs (395g) with probe
