9 Function Pen Multimeter + NCV

Extech 381676A

Go to Product Support
product image

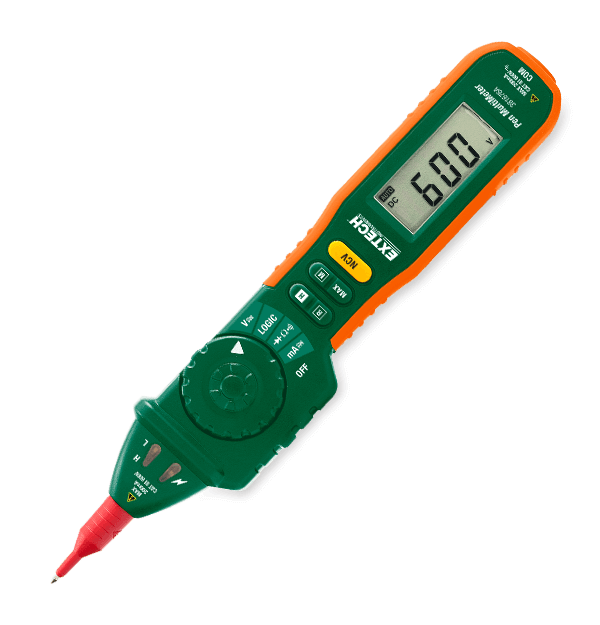

The Extech 381676A is a Pen Styled Multimeter with a Built in NCV detector. The 381676A features nine functions including AC/DC voltage to 600V, AC/DC Current to 200mA, Resistance, as well as Logic, Diode and Continuity tests. This meter has an easy to use rotary dial with alligator clips for one handed operation. Its convenient built in non-contact voltage detector allows for quick detection of live voltage. The 381676 comes complete with test leads, alligator clips, batteries and manual.

$49.99
Buy Now
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
20mA, 200mA
AC Current Basic Accuracy
±2%
AC Current Max Resolution
0.01mA
AC Voltage
200mV, 2, 20, 200, 600V
AC Voltage Basic Accuracy
±0.8%
AC Voltage Max Resolution
0.1mV
Continuity
Audible beeper <50Ω
DC Current
20mA, 200mA
DC Current Basic Accuracy
±1.5%
DC Current Max Resolution
0.01mA
DC Voltage
200mV, 2, 20, 200, 600V
DC Voltage Basic Accuracy
±0.7%
DC Voltage Max Resolution
0.1mV
Diode Test
1mA @ 1.5V approx
Logic Test
0 to 1.5V (Green LED), 1.5 to 3.5V (LED Off ), 3.5 to 5V (Red LED)
Non-Contact Voltage (NCV) Detector
>110VAC
Resistance
200, 2k, 20k, 200k, 2M, 20MΩ
Resistance Max Resolution
0.1Ω
Additional Details
Certifications
CE
Dimensions
8.2 × 1.5 × 1.1” (208 × 38 × 29mm)
Power
2 × AAA (1.5V) batteries
Safety Category
CATIII - 600V
Warranty
2 years
Weight
4.6oz (129g)
Related Documents
