80A Mini AC/DC Clamp Meter

Extech 380950

Go to Product Support

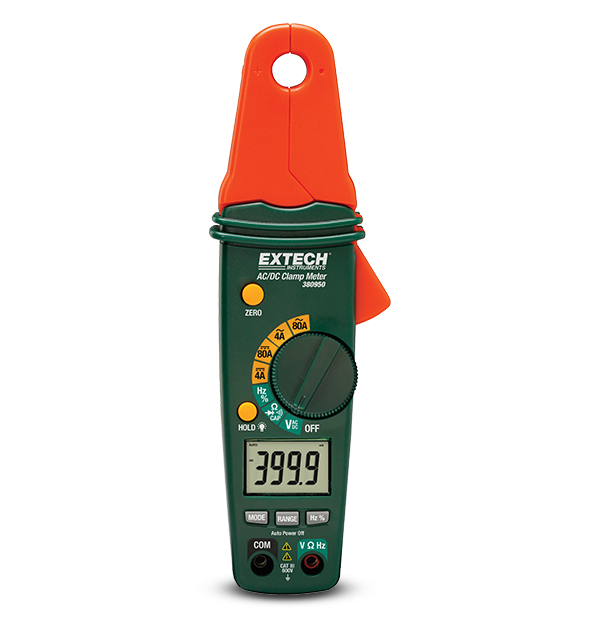

product image

The compact Extech 380950 is a mini AC/DC clamp meter. The 380950 has an extra-small diameter jaw designed to reach into very small areas while providing a 1 mA resolution and very low-current sensitivity. This amp clamp performs essential troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work as well as residential, automotive, fleet maintenance, marine, and motorcycle electrical repair. Complete with test leads, two 1.5V AAA batteries and carrying case.

$162.99
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Current
4A, 80A
AC Current Basic Accuracy
±(2.5% of reading + 5 digits)
AC Current Max Resolution
1mA
AC Voltage
400mV to 600V
AC Voltage Basic Accuracy
±(2.0% of reading + 4 digits)
AC Voltage Max Resolution
0.1mV
Continuity
Yes
DC Current
4A, 80A
DC Current Basic Accuracy
±(2.5% of reading + 4 digits)
DC Current Max Resolution
1mA
DC Voltage
400mV to 600V
DC Voltage Basic Accuracy
±(1.5% of reading + 3 digits)
DC Voltage Max Resolution
0.1mV
Diode Test
Yes
Duty Cycle
5 to 99.9%
Duty Cycle Basic Accuracy
±(1.2% of reading + 3 digits)
Duty Cycle Max Resolution
0.1%
Frequency
5Hz to 10MHz
Frequency Basic Accuracy
±(1.2% of reading + 3 digits)
Frequency Max Resolution
0.001Hz
Jaw Size
0.5" (12mm), conductors up to 3/0 AWG
Resistance
400Ω to 40MΩ
Resistance Max Resolution
0.1Ω
Additional Details
Certifications
CE, UL
Dimensions
8.2 × 2.7 × 1.4" (210 × 70 × 37mm)
Display
4000-count segment LCD
Safety Category
CAT III-300V
Warranty
2 years
Weight
7oz (200g)
