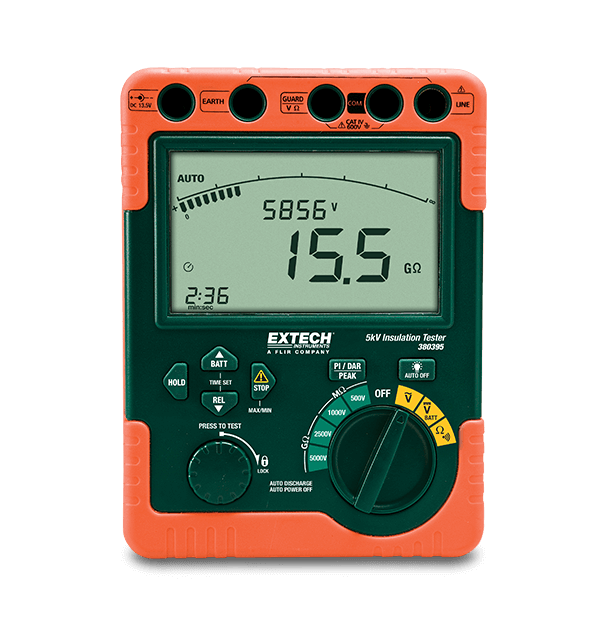

High Voltage Digital Insulation Tester (110V)

Extech 380395

Go to Product Support
product image

With the Extech 380395, measure insulation resistance up to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. Its features include polarization index measurement (PI), dielectric absorption ratio measurement (DAR), AC/DC voltage measurement up to 600 V, peak and relative functions, and a 1 min to 15 min timer function for IR measurements. Comes with test leads, eight C batteries, 120 V AC adaptor, heavy duty carrying case, and a user manual.

$933.90
Product Shipping FREE Shipping
Product Returns Shipping & Returns
Sales Contact Contact Sales
Contact Sales

Want more information on this product?

Call +1 (866) 477-3687 to speak with a knowledgeable specialist.

Specifications
General Specifications
AC Voltage
0 to 600V
AC Voltage Basic Accuracy
±1% of reading
Continuity
50Ω
DC Voltage
0 to 600V
DC Voltage Basic Accuracy
±1% of reading
Insulation Resistance
0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
Insulation Resistance Basic Accuracy
±2.5% of reading
Insulation Test Voltage
500V, 1000V, 2500V, 5000V
Resistance
0 to 600Ω
Additional Details
Certifications
CE
Dimensions
7.8 × 5.8 × 3.4" (198 × 148 × 86mm)
Display
4.4 × 2.75" backlit segment LCD with bargraph
Power
8 × C (1.5V) batteries, 120V AC adaptor
Safety Category
CAT IV-600V
Warranty
2 years
Weight
3.2lb (1438g)
Related Documents
Export Restrictions

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
