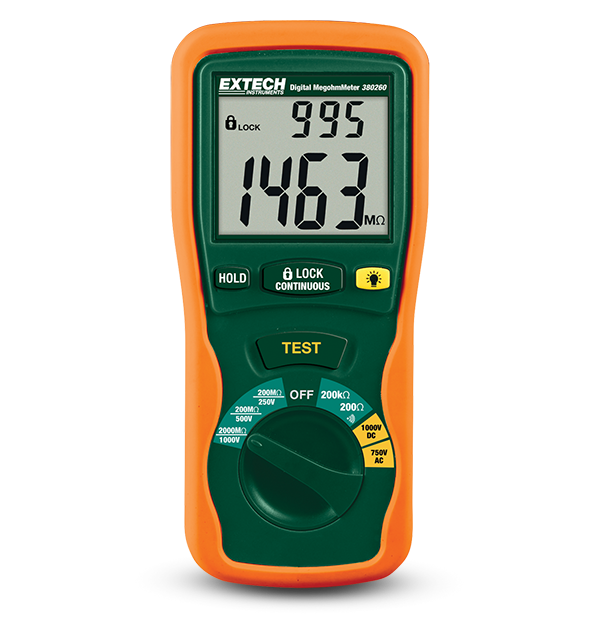

This autoranging megohmmeter measures insulation resistance up to 2000MΩ. Choice of 250, 500 or 1000VDC test voltages. The large backlit dual display indicates test voltage output and insulation resistance. Low resistance, continuity and AC/DC voltage measurement functions. Other features include automatic discharge at the end of test, protective holster with stand, power lock on feature and data hold. Complete with test leads, carrying case and 6 AA batteries.
- Products
- Test & Measurement
- Electrical Tools
- Resistance Testers
- Extech 380260
Added to cart
Contact Sales
Want more information on this product?
Call +1 (866) 477-3687 to speak with a knowledgeable specialist.
Specifications
General Specifications
- AC Voltage Test
- Yes
- Insulation Resistance
- 200MΩ, 2000MΩ
- Insulation Resistance Basic Accuracy
- ±3%
- Insulation Resistance Max Resolution
- 0.1MΩ
- Insulation Test Voltage
- 250V, 500V, 1000V
- Low Resistance
- Yes
Additional Details
- Certifications
- CE
- Dimensions
- 7.8 × 3.6 × 1.9" (200 × 92 × 50mm)
- Display
- Segment LCD with backlighting
- Power
- 6 × AA (1.5V) batteries
- Safety Category
- CAT III-1000V
- Warranty
- 2 years
- Weight
- 24.6oz (700g)
